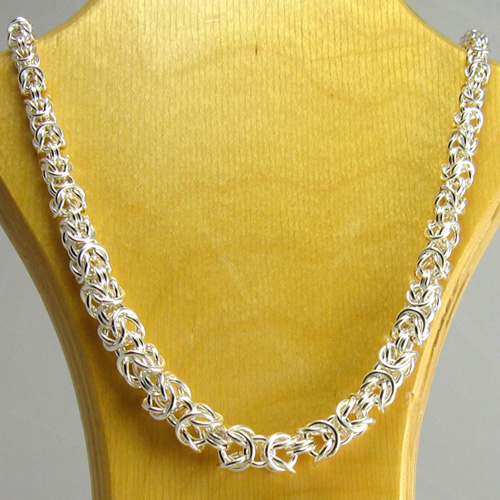

Graduated Byzantine Chain - I love the Byzantine chain. It can be so many things with a ring change here and there. Below is a plan for making a graduated chain. Use the instructions for the Byzantine to learn the chain, then the pattern information below to make the graduated chain.

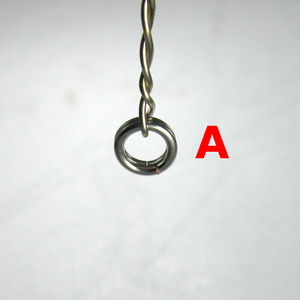

STEP 1: The Starter A

Close 2 jump rings, (pair A).  Attach a small piece of wire to the end pair to create a handle. [For faster chain making, open jump rings and organize in piles of six rings.]

Size Selection: This project uses several sizes of jump rings, please consult the chart at the end of this instruction set for the proper gauge and I.D.
  byz-step1

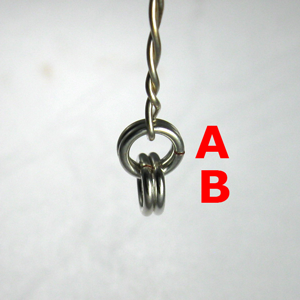

STEP 2: The Starter B

Attach 2 new jump rings to pair A.

  byz-step2

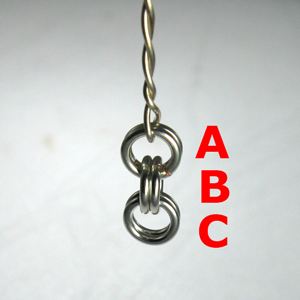

STEP 3: The Starter C

Attach 2 new jump rings to pair B.

  byz-step3

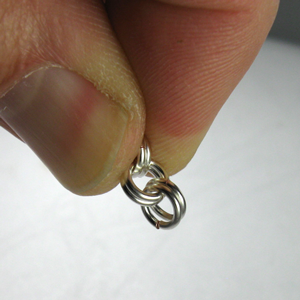

STEP 4: The Grip

Hold the starter by the wire and let the jump rings hang. Use your thumb and finger so that you pinch Pair A & B. This isolation technique will make it easier to build your chain. If you move your hand, only pair C should move back and forth.

  byz-step4

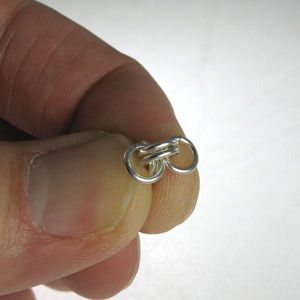

STEP 5: The Flip

Turn you hand so that you are pointing the starter at the ceiling. (C is now on top). Flip pair C open like the petals of a flower.

  Step 5 Byzantine Chain

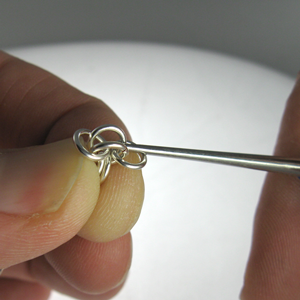

STEP 6: The Separation

Using an Awl or pointed tool, separate the rings of pair B. If you lose your place start over (step 4: the grip) and focus on pinching pair A/B to keep the rings from moving too much..



  Step 6 Byzantine Chain

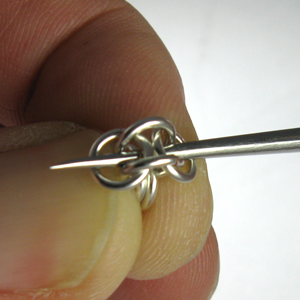

STEP 7: The Push

Push the awl into the chain. The link should appear like the photo. You have used all 6 rings and the pattern now repeats.

Are your six rings open and ready?



  Step 7 Byzantine Chain

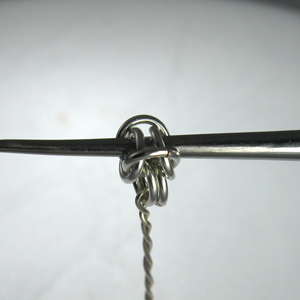

STEP 8: The Push

Should look like this.
  Step 9 Byzantine Chain

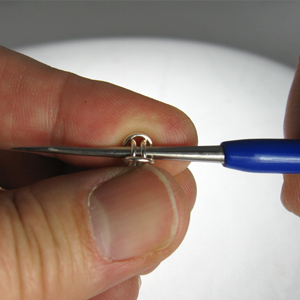

STEP 9: The Hold

Grasp the chain firmly. Prepare to remove the awl.

  Step 8 Byzantine Chain

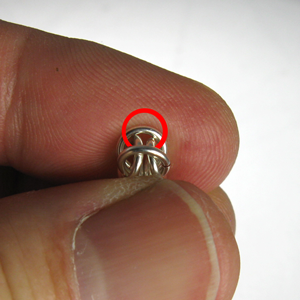

STEP 10: The Hold

As you remove the Awl, maintain a firm pressure. This will keep the chain from collapsing while you pickup and add your next set of jump rings.

The Red shows the placement of the next ring.

  Step 10 Byzantine Chain

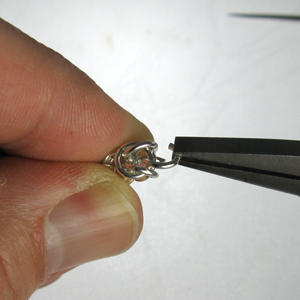

STEP 11: Insert New A

Insert a jump ring (new Pair A) onto the spot that was occupied by the awl. This may feel awkward at first, but you will quickly become proficient. I use a sweeping motion like setting a hook.

  Step 11 Byzantine Chain

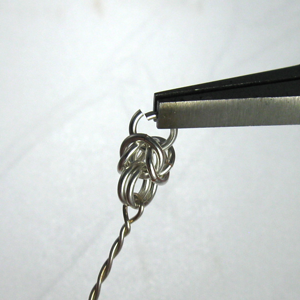

STEP 12: Insert New A

Don’t put down the chain just yet. Reinsert the awl to hold your spot open. Whenever I need to put down my chain I always put the awl back in.

  Byzantine Poppy Step 12

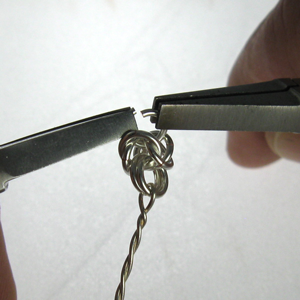

STEP 13: Close A and Add Another

Close the jump ring with a second plier. Work it back and forth with a slight inward pressure so there is no opening on the ring.

Don’t put down the chain just yet. Reinsert the awl to hold your spot open. Whenever I need to put down my chain I always put the awl back in.

Pick up another jump ring and place it next to the first.

  Step 11 Byzantine Chain

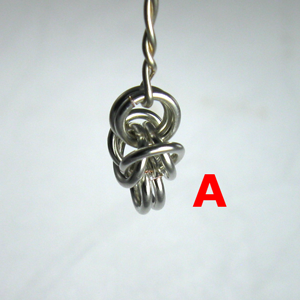

STEP 14: The New A

The pair of jump rings that you inserted in step 13 is now the new pair A (step 1)

  Step 14 Byzantine Chain

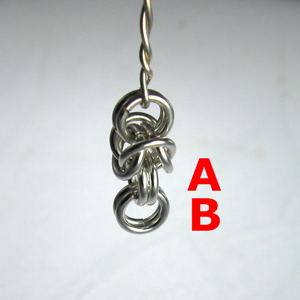

STEP 15: The New B

Add two new jump rings to pair A.
  Step 15 Byzantine Chain

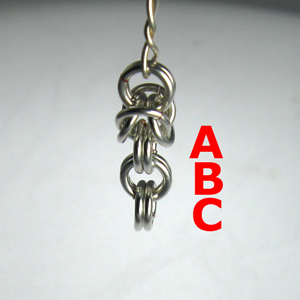

STEP 16: The New C

Add two new rings to pair B.

REPEAT: Steps 4 - 16 and Repeat until desired length.



  Step 16 Byzantine Chain

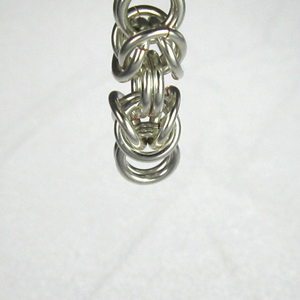

STEP 17: Graduate

The beginning of the chain uses 18ga 3.5 for the first three of so inches. You can adjust the overall length of the chain by adding or subtracting from the ends.

The photo shows pair A in place.

USE THE CHART BELOW FOR THE CORRECT SIZING OF EACH TRANSITION

  byz-step17end
  Follow the chart transitions. Remember that 3 pair make the simple A-B-C chain. Then perform the flip and add pairs A, B, C row by row.
Row A B C
1 18ga 3.5 18ga 3.5 18ga 3.5
2 18ga 3.5 18ga 3.5 18ga 3.5
3 18ga 3.5 18ga 4.0 18ga 4.0
4 18ga 3.5 18ga 4.0 18ga 4.0
5 18ga 3.5 18ga 4.5 18ga 4.5
6 18ga 3.5 18ga 4.5 18ga 4.5
7 18ga 3.5 16ga 4.5 16ga 4.5
8 16ga 4.5 16ga 4.5 16ga 4.5
9 16ga 4.5 16ga 5.0 16ga 5.0
10 16ga 4.5 16ga 5.0 16ga 5.0
11 16ga 4.5 16ga 5.5 16ga 5.5
12 16ga 4.5 14ga 5.0 14ga 5.0
13 14ga 5.0 14ga 5.5 14ga 5.5
14 14ga 5.0 14ga 5.5 14ga 5.5
15 14ga 5.0 14ga 6.0 14ga 6.0
16 14ga 5.0 14ga 6.0 14ga 6.0
17 14ga 5.0 14ga 6.5 14ga 6.5
18 14ga 5.0 14ga 6.5 14ga 6.5
19 14ga 5.0 14ga 7.0 14ga 7.0
Reverse the order back to 1
19 14ga 5.0 14ga 7.0 14ga 7.0
18 14ga 5.0 14ga 6.5 14ga 6.5
17 14ga 5.0 14ga 6.5 14ga 6.5
etc

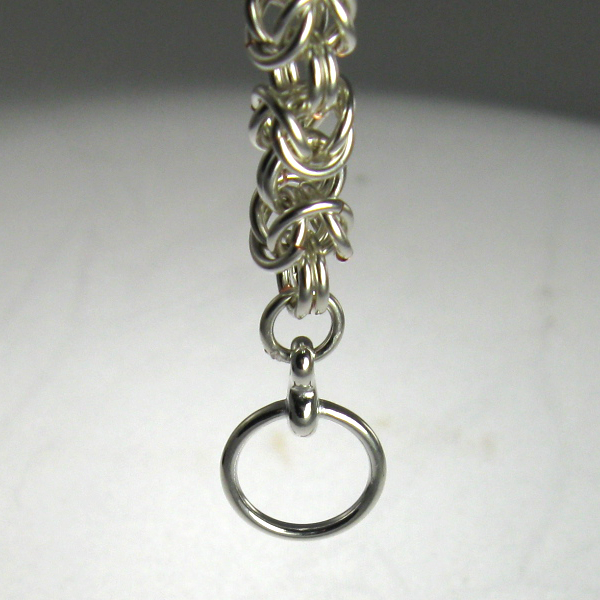

STEP 18: Add a Clasp

After the last flip, use a single jump ring to attach the clasp of your choice.
  Step 11 Byzantine Chain
